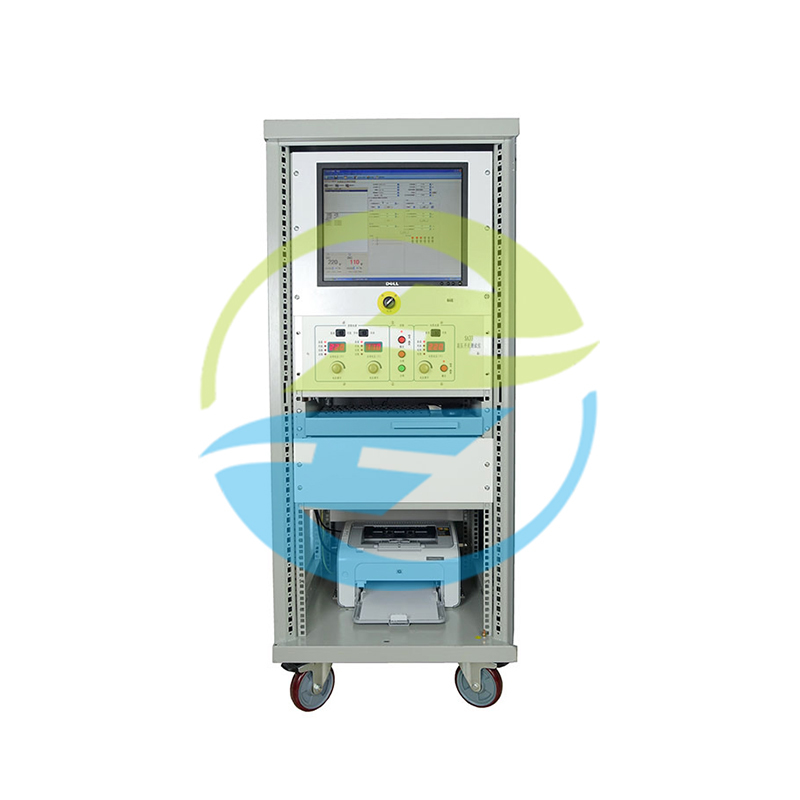

The HCST-001 High Voltage Switch Tester is an integrated testing device for mechanical characteristics, electrical performance, and motion analysis. It simultaneously performs high-precision time measurements on 6 main contacts and 6 auxiliary contacts, supports closing resistor testing, travel and speed analysis, automatic operation tests, and report generation. Equipped with dual adjustable AC/DC power supplies, it is suitable for on-site testing and diagnostics of various high-voltage switchgear.
Supports 6-channel main/auxiliary contact timing measurement (closing, opening, bounce, non-synchronism, etc.)
High-precision analog and digital sensor inputs for travel, angle, and speed measurement
Dual independent adjustable AC/DC control and motor power supplies
Built-in current sensors for real-time coil and motor current monitoring
Supports 10,000 automatic operation endurance tests
Data pre-storage to prevent loss, USB export and software upgrade support
Automatically generates Word test reports with waveforms, logos, and data tables
Electronic switch control for long life and high accuracy
Manual and automatic voltage adjustment modes
Complies with IEC 62271 and other international standards
|
Standard Number |
Standard Name and Clause Description |
|---|---|
|
IEC 62271-100 |
High-voltage AC circuit breakers - Mechanical operation and electrical performance testing |
|
IEC 62271-102 |
High-voltage AC disconnectors and earthing switches - Mechanical and electrical characteristics |
|
IEC 60068-2-6 |
Environmental testing - Vibration tests |
|
IEC 61010-1 |
Safety requirements for electrical equipment for measurement, control, and laboratory use |
Regular maintenance of high-voltage switchgear in power plants and substations
Factory acceptance testing and inspection of circuit breakers and isolators
On-site testing and services by power maintenance companies
Research analysis in laboratories and scientific institutions
Teaching and demonstration in electrical training institutions
| Parameter Item | Technical Specification |
|---|---|
| Time Measurement Range | 1～20000ms |
| Time Measurement Accuracy | ±(0.05%t + 0.1)ms |
| Analog Sensor Input Range | 0～5V |
| Analog Sensor Resistance Range | 50Ω～5kΩ |
| Digital Sensor Interface | RS422 (Long-line Driver) |
| Angle Measurement Accuracy | ±0.1º, Resolution 0.05º |
| Travel Measurement Range | Up to 1000mm, Resolution 0.1mm |
| Travel Measurement Accuracy | ±(0.5%L + 0.2)mm |
| Speed Measurement Range | 0～20m/s, Resolution 0.01m/s |
| Control Power Output | 0～270V/10A (AC/DC) |
| Motor Power Output | 0～250V/20A (AC/DC) |
| Voltmeter Measurement Range | 0～300V, Accuracy ±(0.5%U + 1)V |
| Coil Current Measurement | 0～20A (DC/AC Peak), Resolution 10mA |
| Motor Current Measurement | 0～20A (DC/AC Peak), Resolution 10mA |
| Closing Resistance Range | 50～2000Ω, Accuracy ±(1%R + 1)Ω |
| Output Control Power | DC/AC 300V/30A |
| Operating Power Supply | 198～264VAC, 47～63Hz |
| Operating Environment | -10～50℃, Humidity ≤90%RH non-condensing |
| Dimensions | 1450×600×800mm |
| Weight | 70kg |
