Automotive Electrical Testing Equipment with Modular Design High-Precision Measurement and Multi-Standard Compatibility

Automotive Electrical Testing Equipment with Modular Design High-Precision Measurement and Multi-Standard Compatibility

브랜드 이름: HongCe
모델 번호: HCUN01
모크: 1 세트
가격: 1set
지불 조건: t/t, l/c, d/p
공급 능력: 1 세트
자세한 정보
원래 장소:
중국
인증:
calibration certificate(cost additional)
열전대 온도 범위:
100 ° C
전원 공급 장치 전압:
380V 50Hz
치수:
2000mm * 1000mm * 1500mm
무게:
약 350kg
색상:
청회색
보증:
1 년
포장 세부 사항:
합판
강조하다:

Modular Design Automotive Electrical Testing Equipment

,

High-Precision Measurement Universal Test Bench

,

Multi-Standard Compatibility Performance Test Bench

제품 설명

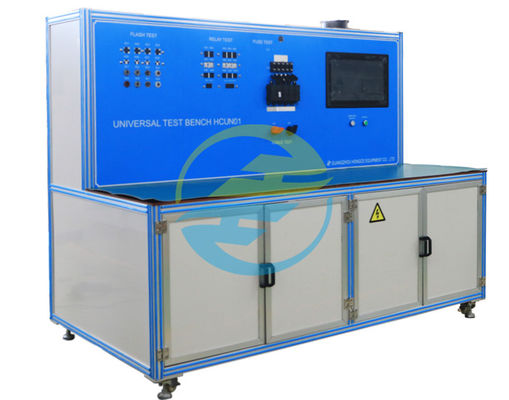

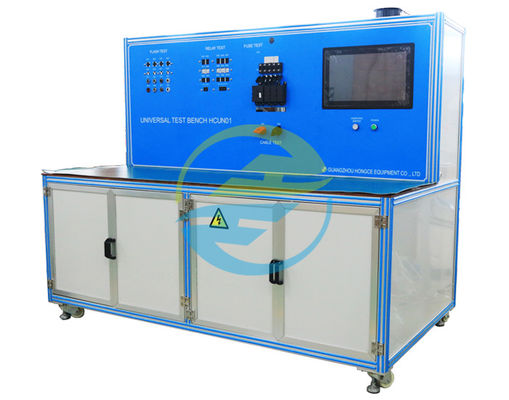

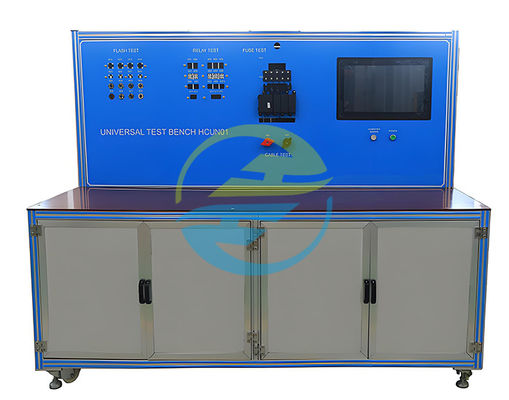

Automotive Electrical Components Universal Testing Equipment
Comprehensive Performance Test Bench for Electrical Parts, Safety Reliability & Durability Testing
The universal test bench for automotive electrical components is a high-performance testing platform that integrates advanced measurement and control technologies with extensive industry experience. This equipment can simulate a variety of harsh environmental and electrical conditions, enabling comprehensive performance evaluation and durability testing of key components such as automotive wiring harnesses, relays, sensors, and fuses.
Key Features:
  • Modular Design: Compatible with a variety of electrical components, flexible configuration, and fast test mode switching.
  • High-Precision Measurement and Control: Utilizes advanced acquisition modules to ensure data authenticity and repeatability.
  • Multi-Standard Compatibility: Supports testing according to international standards such as IEC, ISO, and GB/T.
  • Intelligent System: Touchscreen operation + automatic test report generation.
  • Safety Protection: Built-in overcurrent and overvoltage protection ensures the safety of both the device and the device under test.
Reference Standards:
Standard Description
JIS D 5011 Relay Arrangement and Function Assignment
JIS D 5010 Relays
JIS D5707 Flashers
SAE J1494 Battery Booster Cables
ISO 8820 Blade-Type TYBE Fuses
DIN 7281 Low-Voltage Fuses
SAE J 554 Glass Fuses
SAE J1888 High-Voltage Fuses
