Heavy-Duty Road Bump Simulation Test Bench for Packaging Transportation Impact Testing | Transportation Impact Testing Machine | Inclined Sliding Impact Tester
Packaging does far more than present a product—it protects everything manufacturers have invested in. During transportation, products are exposed to sudden impacts, sliding collisions, forklift handling, warehouse stacking, truck vibrations, container loading, and repeated logistics operations. Even well-designed packaging can fail if it has never been tested under realistic transportation conditions.
The HongCe Road Bump Simulation Test Bench is engineered to reproduce the dynamic impact conditions encountered throughout the logistics chain. By simulating inclined sliding collisions and transportation impacts, it enables manufacturers to evaluate packaging integrity, cushioning performance, and product protection before products enter the market.
Designed for laboratories, quality assurance departments, packaging manufacturers, appliance producers, furniture factories, logistics companies, and research institutions, this testing system helps reduce transportation damage, optimize packaging design, and improve customer satisfaction.

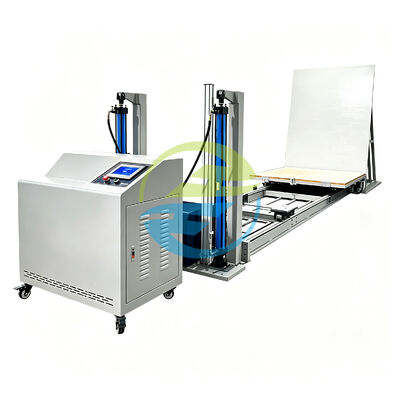

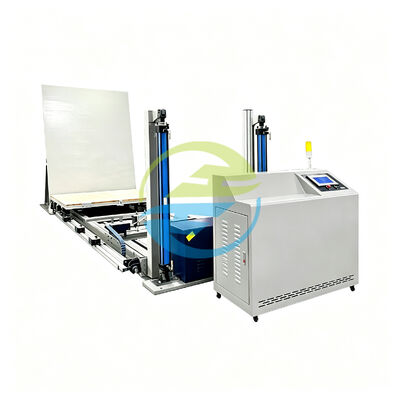

The HongCe Road Bump Simulation Test Bench is a professional transportation impact testing machine designed to simulate real-world road bump and inclined sliding impacts experienced during logistics and handling. Featuring PLC control, touchscreen operation, adjustable impact speed, USB data output, and a heavy-duty hydraulic drive system, it evaluates the impact resistance of packaging materials, refrigerators, furniture, cartons, and other packaged products while helping manufacturers optimize packaging performance and minimize transportation-related damage.
The equipment adopts an industrial PLC control system that ensures stable operation, accurate parameter control, and reliable repeatability throughout every testing cycle.
An intuitive touchscreen interface simplifies parameter configuration, test monitoring, and operation management, significantly reducing operator training time.
Impact velocity can be adjusted between 1.1–2.3 m/s, enabling simulation of different logistics environments and transportation conditions.
The hydraulic lifting system provides stable motion with excellent repeatability while minimizing vibration during equipment operation.
The spacious impact platform accommodates large packages, household appliances, furniture products, industrial equipment, and oversized shipping cartons.
Stable mechanical construction and precision control minimize testing deviations and provide highly repeatable testing results suitable for quality laboratories.
Testing data can be exported via USB for documentation, report generation, quality traceability, and customer certification purposes.
The rigid steel frame delivers long-term durability, making the equipment suitable for continuous production environments and testing laboratories.
The modular hydraulic structure and industrial components simplify maintenance while reducing downtime.
HongCe supports customized platform dimensions, loading capacity, control software, fixtures, and testing configurations according to customer requirements.
The HongCe Road Bump Simulation Test Bench is suitable for evaluating transportation resistance across a wide range of industries.
Large household appliances are frequently exposed to repeated transportation impacts before reaching consumers.
Typical products include:
| Standard | Scope | Relevant Content |
|---|---|---|
| ASTM D880 | Impact Testing for Shipping Containers | Horizontal and inclined impact testing methods for evaluating transportation hazards |
| ASTM D4003 | Packaging Performance Evaluation | Mechanical handling simulation for packaged products |
| ISTA 1A | Non-Simulation Integrity Performance Test | Basic transportation integrity verification |
| ISTA 2A | Partial Simulation Performance Test | Packaging evaluation under transportation conditions |
| ISTA 3A | General Simulation Performance Test | Distribution environment simulation for packaged products |
| ISO 2248 | Complete Filled Transport Packages | Vertical impact and handling performance evaluation |
| GB/T 4857 Series | Packaging Transport Test Methods | Transportation impact, vibration, compression, and handling tests |
| Item | Specification |
|---|---|
| Control System | PLC Intelligent Control |
| Display Interface | Industrial Touchscreen Display |
| Data Output | USB Data Export |
| Maximum Load Capacity | ≤ 500 kg |
| Track Inclination Angle | 10° |
| Impact Plate Size | 1600 mm * 2000 mm Steel Plate |
| Maximum Sliding Distance | 2000 mm |
| Impact Speed Range | 1.1 – 2.3 m/s |
| Impact Speed Accuracy | ≤ ±5% |
| Sliding Carriage Surface Size | 1500 mm * 1500 mm (L * W) Thick Steel Plate |
| Applicable Test Samples | Packaging materials, refrigerators, furniture, cartons, packaged products, etc. |
| Maximum Test Specimen Size | Approx. 1500 mm * 1500 mm * 1500 mm (L * W * H) |
| Machine Dimensions | Approx. 6470 mm * 1600 mm * 1980 mm (L * W * H) |
| Lifting Motor Power | 1.5 kW |
| Hydraulic Power Unit | 1.5 kW (2 HP), 40 L Oil Tank |
| Machine Weight | Approx. 1900 kg |
| Compressed Air Supply | ≥ 0.6 MPa |
| Power Supply | Three-phase AC 380 V |
| Total Installed Power | Approx. 3.1 kW |
| Primary Test Item | Inclined sliding transportation impact resistance of packaging materials, refrigerators, furniture, cartons, and similar products |
Customers can request tailored solutions for:
A Road Bump Simulation Test Bench is a transportation impact testing machine designed to reproduce the inclined sliding impacts that packaged products may encounter during loading, unloading, warehousing, and road transportation. It helps manufacturers evaluate packaging performance before products enter the market.
The HC-A523 is suitable for a wide range of packaged products, including:
The standard machine supports a maximum load of 500 kg, making it suitable for medium and large packaged products.
Yes. As the original manufacturer, HongCe offers comprehensive OEM and custom engineering services, including:
Yes. HongCe supplies complete operation manuals, installation guidance, online technical support, and operator training to ensure customers can use the equipment efficiently and safely.
The HC-A523 uses a precision hydraulic drive system combined with an industrial PLC controller to achieve an adjustable impact speed range of 1.1–2.3 m/s, with an accuracy of ≤ ±5%.
Yes. Test data can be exported via USB for quality documentation, laboratory reporting, and production traceability.
Typical industries include:
HongCe is a professional manufacturer specializing in IEC testing equipment, environmental testing systems, impact testing machines, flammability testing equipment, IP testing equipment, plug and socket testing instruments, and customized laboratory solutions.
With years of engineering experience, HongCe combines independent research and development, precision manufacturing, quality inspection, and global technical support to provide reliable testing solutions for customers worldwide.
